Single-family housing composed of a social area with different functions:

• Living room, dinner, kitchen and Office.

• A private area with closet and a suite including sanitary installation, one bedroom and a sanitary installation.

• A technical area with laundry, pantry, utility & equipment.

Projects of houses - Eco Villa

This project has 185 m2 construction area, more 45 m2 covered terrace and car parking 35 m2 covered terrace for barbecue and outdoor room.

The Villa is ideally designed for moderate climates, where temperatures oscillate between 30° C in summer and 5° C in winter, that is the Central and southern regions of Portugal.

Openings in the shell were carefully located and dimensioned in such a way as to promote the entry of the Sun in winter, avoid excessive losses of energy and allow cross ventilation in summer.

A good natural lighting allows, in 85% more often than not, the light is sufficient for the tasks during the day, they do not require artificial light.

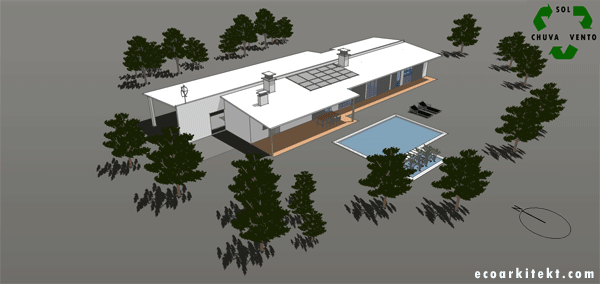

Bioclimáticas Strategies

A most energy-efficient Architecture enables the use of heating or air conditioning are reduced more.

The landscaping of the surrounding is important in local integration and housing exposure controls. The trees provide protection in winter and the surrounding air cooling in summer. The pool also offers air evaporative cooling.

The ceiling fans let you move the air inside on hot days, may seem cooler at least 2.8° C, less cooling is needed for air conditioning.

The outer protection of shaders allow the Sun in summer and maximize its entrance in winter.

The Trombe wall allows you to heat the House in a natural way, taking advantage of the Sun's radiation.

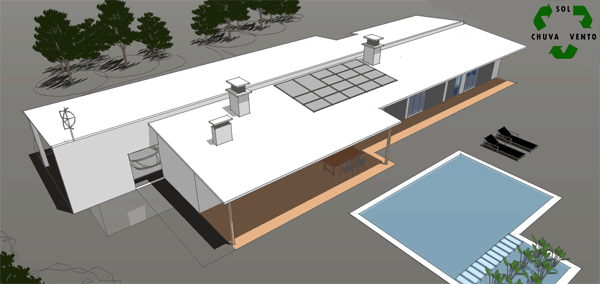

Renewable Energies

Allies the most energy-efficient architecture, the use of the Sun, Wind and water, It's more rewarding in terms of energy use and water consumption system for.

The Villa allows the installation of solar thermal water heating health, photovoltaic solar panels and mini-eólicas for micro-production of electricity. All necessary equipment can be installed in the technical zone.

Utilization of rainwater

The installation of a water reservoir allows you to collect rainwater for use in potable not consumptions, as for the watering of the garden, car wash, discharge of flushing cisterns and washing of clothes.

T4 com uma área de implantação de 170 m2 more space outside and a floor area of 200 m2

Villa Projects 2

• the vents are located in the Villa in order to dissipate the heat inside the building in summer

• a piscina permite um arrefecimento evaporativo eliminando a entrada de calor

Cross Ventilation Projects 2

• the thermal insulation and the use of the thermal inertia of the indoor temperature environment lets you keep comfortable

• the outer protection of shaders allow the Sun in summer and maximize its entrance in winter

Projects - Position of the Sun

• the size of the glazed areas can capture energy from the Sun in winter and prevents excessive losses of energy

• natural sunlight is harnessed during the day throughout the year by reducing energy requirements for lighting

Projects - Lighting levels

• 76% of the year lies within comfort temperature

Projects - Annual Temperature

Nos dias com temperaturas extremas no exterior no Inverno de 4ºC verificaram-se no interior uma temperatura média de 14ºC (without any heating system) e no Verão de 36ºC no exterior registando o interior uma temperatura de 26ºC (without any cooling system).

Verificando no modelo da casa uma estabilidade das temperaturas médias interiores em relação às amplitudes exteriores, in that 76% of the year lies within comfort temperature (18° C-26° C).

T3 with a deployment area 265 m2 more space outside and a floor area of 225 m2

Villa Projects 1

• the vents are located in the Villa in order to dissipate the heat inside the building in summer

• the ventilated desvão can dissipate heat absorbed by isolating the interior cover

• the thermal insulation and the use of the thermal inertia of the indoor temperature environment lets you keep comfortable

Cross Ventilation Projects 1

• the outer protection of shaders allow the Sun in summer and maximize its entrance in winter

• the size of the glazed areas can capture energy from the Sun in winter and prevents excessive losses of energy

Draft 1 - Position of the Sun

• natural sunlight is harnessed during the day throughout the year by reducing energy requirements for lighting

Projects 1 - Lighting levels

• 78% of the year lies within comfort temperature

Projects 1 - Annual Temperature

• On days with temperature extremes outside in the winter of 4ºc occurred within an average temperature of 14.5° C (without any heating system) and in the summer of 36 C abroad with the interior temperature of 25.5° C (without any cooling system).

• Checking in the model of the House a maintenance of average temperatures in relation to external amplitudes interiors, in that 78% of the year lies within comfort temperature (18° C-26° C).

•

  Projects of houses - Villa Rental 1



  Projects of houses - Villa Rental 2

  Orientação Solar

• Promoção dos ganhos solares

• Exterior shadings

• Scaling of the glazed area

• Posicionamento dos espaços interiores

• Protecção dos ventos dominantes

• Isolamento térmico

• Inércia térmica forte

• Ventilação natural cruzada

• Evaporative cooling
